主頁 ? 產品中心 ? 其它產品 ? 微動開關Switch ? 金屬開關 ? RD19 ?

金屬按鈕開關是利用現代電力電子技能，操控開關管注冊和關斷的時刻比率，保持安穩輸出電壓的一種電源，金屬按鈕開關通常由脈沖寬度調制（PWM）操控IC和MOSFET構成。金屬按鈕開關在規劃中有必要具有過流、過熱、短路等維護功能。
直徑19mm 金屬開關 RD19

•  RD19-A2       •  RD19-A3
•  RD19-B1       •  RD19-C2
•  RD19-D1       •  RD19-D2
•  RD19-E2       •  RD19-E6
•  RD19-F1       •  RD19-F2
•  RD19-G2       •  RD19-H1
•  RD19-J          •  RD19-L2
•  RD19-L3        •  RD19-S3
•  RD19-S4       •  RD19-S5

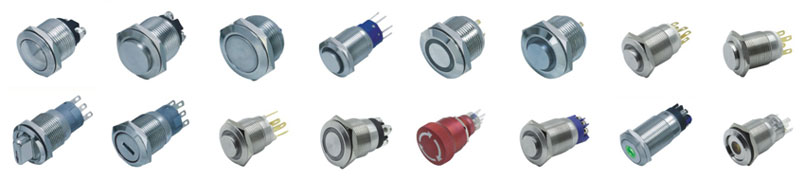

                   直徑19mm 金屬開關 RD19實拍圖



Part Number Mounting Hold Size Switch Rating Switch Combination Operation Types Head Shape Enclosure Material Degree of protection Lamp Type PDF下載
RD19-A2 φ19mm 3A/250VAC 1NO Resetable Round Nickel plated brass/Stainless stell IP65,IK08 / 暫無
RD19-A3 φ19mm 3A/250VAC 1NO Resetable High Flat Nickel plated brass/Stainless stell IP65,IK08 / 暫無
RD19-B1 φ19mm 3A/250VAC 1NO Resetable Flat Nickel plated brass/Stainless stell IP65,IK08 / 暫無
RD19-C2 φ19mm 5A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 Ring Illuminated 暫無
RD19-D1 φ19mm 3A/250VAC 1NO Resetable Flat Nickel plated brass/Stainless stell IP65,IK08 / 暫無
RD19-D2 φ19mm 3A/250VAC 1NO Resetable High Flat Nickel plated brass/Stainless stell IP65,IK08 Ring Illuminated 暫無
RD19-E2 φ19mm 5A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking High Flat Nickel plated brass/Stainless stell IP67,IK10 Ring Illuminated 暫無
RD19-E6 φ19mm 5A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 / 暫無
RD19-F1 φ19mm 5A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 / 暫無
RD19-F2 φ19mm 5A/250VAC 1NO 1NC/2NO 2NC 2 Posilton 3 Posilton Key Nickel plated brass/Stainless stell IP50,IK10 / 暫無
RD19-G2 φ19mm 50mA/36VDC 1NO Resetable Self-locking High Flat Nickel plated brass/Stainless stell IP67,IK10 Ring Illuminated 暫無
RD19-H1 φ19mm 5A/250VAC 1NO Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 Ring Illuminated 暫無
RD19-J φ19mm 5A/250VAC 1NO 1NC/2NO 2NC 2 Posilton Round Aluminum plated color/Stainless stell IP67,IK10 / 暫無
RD19-L2 φ19mm 5A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking High Flat Nickel plated brass/Stainless stell IP67,IK10 Ring Illuminated 暫無
RD19-L3 φ19mm 5A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 Dot Illuminated 暫無
RD19-S3 φ19mm 5A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 Dot Illuminated 暫無
RD19-S4 φ19mm 5A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 Character Illuminated 暫無
RD19-S5 φ19mm 5A/250VAC 1NO 1NC/2NO 2NC Resetable Self-locking Flat Nickel plated brass/Stainless stell IP67,IK10 / 暫無
